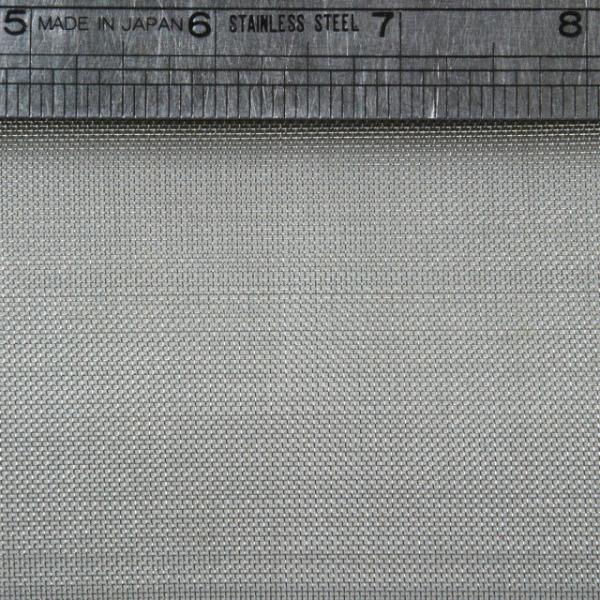

Sus304 10x10 304 Aisi 316 Stainless Steel Woven Wire Mesh For Plating Industry

Brand Name : TL

Place of Origin : Hengshui,China

MOQ : 1 roll

Price : 7-200 us dollar per square meter

Supply Ability : 3000 rolls per month

Packaging Details : Inside waterproof paper,outside wooden carton

Material : Stainless steel 201.202.304.316

Mesh size : 2 mesh-500meshes

Wire diameter : 0.018mm-2.05mm

Weave type : Plain weave

Width : 1m,1.2m,1.3m or customized

Length : 30m or customized

Contact Now

Sus304 10x10 304 aisi 316 stainless steel woven wire mesh,sus 304 316 micron size stainless steel wire woven 325 mesh

Stainless Steel wire mesh is widely used in mining,chemical,food, oil,medicine,machinery, and other industires ,mainly used in gas ,liquid filtration and other media separation, used in acid and alkali environment screening and filtration, electroplating industry to do acid cleaning network.

Material	SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter	0.018-2.03mm
Woven style	plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
Mesh counts	Plain weave wire mesh can be woven up to 400 mesh. Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details	inner kraft, outside plastic cloth, put into wooden pallet or case
Application	Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Woven type

Sus304 10x10 304 Aisi 316 Stainless Steel Woven Wire Mesh For Plating Industry

Stainless steel wire mesh specification

Mesh size	Wire diameter		Aperture		Open area	Net weight (pounds) /100 square feet
	Inch	Mm	Inch	Mm
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Features:

Corrosion resistance.

Anti-acid and alkai

Anti-high temperature.

Good filter performance.

Long using life

Applicatiosn:

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

Sus304 10x10 304 Aisi 316 Stainless Steel Woven Wire Mesh For Plating Industry

Data sheet of the wire mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009
